Die & Mold Tools

PROMAX Tools offers and assortment of carbide cutting tools designed specifically for the Die and Mold industry.

2 Flute Ball End Die and Mold Tools

Improve your production with these Die and Mold End Mills designed to run at faster speeds and feeds resulting in reduced cycle times. Standard with the most advanced Aluminum-Titanium-Nitride (AlTiN) coating which allows for dry machining and extends the life of the tool. These solid carbide end mills are made from ultrafine carbide grade for longer tool life.

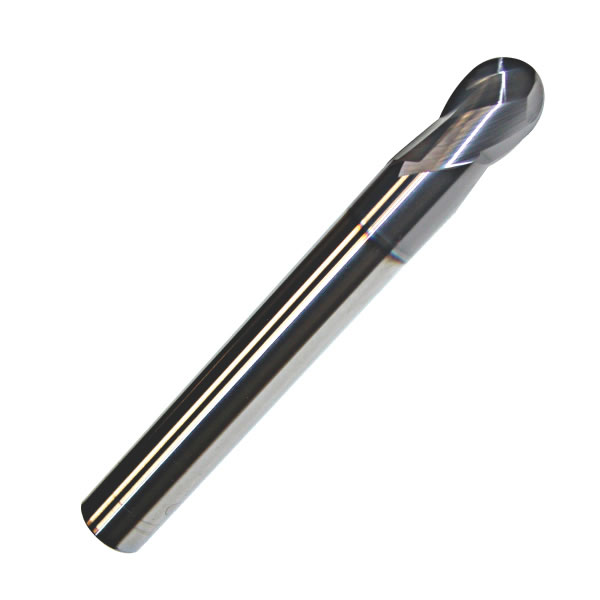

• Series 250 — 0 Degree
• Series 251 — 1 Degree
• Series 252 — 3 Degree
• Series 253 — 5 Degree
• Series 254 — 8 Degree

4 Flute Corner Radius and Ball End Rib Tools

PROMAX Tools' series of Tapered Rib Tools are specifically designed to improve production in high speed machining of deep, tight grooves in plastic injection molds, eliminating time-consuming EDM burning operations resulting in a bench free rib. In addition, our tools reduce cycle times with faster speeds and feeds while our advanced Aluminum-Titanium-Nitride (AlTiN) coating allows for dry machining and extends the life of the tool.

• Series 260 — 0 Degree Taper with Corner Radius
• Series 261 — 1/2 Degree Taper with Corner Radius
• Series 262 — 1 Degree Taper with Corner Radius
• Series 263 — 1-1/2 Degree Taper with Corner Radius
• Series 264 — 2 Degree Taper with Corner Radius
• Series 265 — 3 Degree Taper with Corner Radius
• Series 270 — 0 Degree Taper Ball Nose
• Series 271 — 1/2 Degree Taper Ball Nose
• Series 272 — 1 Degree Taper Ball Nose
• Series 273 — 1-1/2 Degree Taper Ball Nose
• Series 274 — 2 Degree Taper Ball Nose
• Series 275 — 3 Degree Taper Ball Nose

Multi Flute Finishing End Mil for Hardened Materials

Designed for superb finishes on hardened materials up to 65 Rc.

• Series 154

Roughing End Mill for Hardened Materials

Designed for use on extremely tough to machine materials with a 50+ Rc hardness and high temperature alloys like those found in Die and Mold applications. This 4 flute, slow helix (20 degree) rougher comes standard with AlTiN coating because of the high heat levels that are generated in cutting these types of materials.

• Series 103 — Roughing End Mill

You can expect the same high quality with these Die and Mold Tools that PROMAX Tools is known for with all of our High Performance Solid Carbide End Mills.
